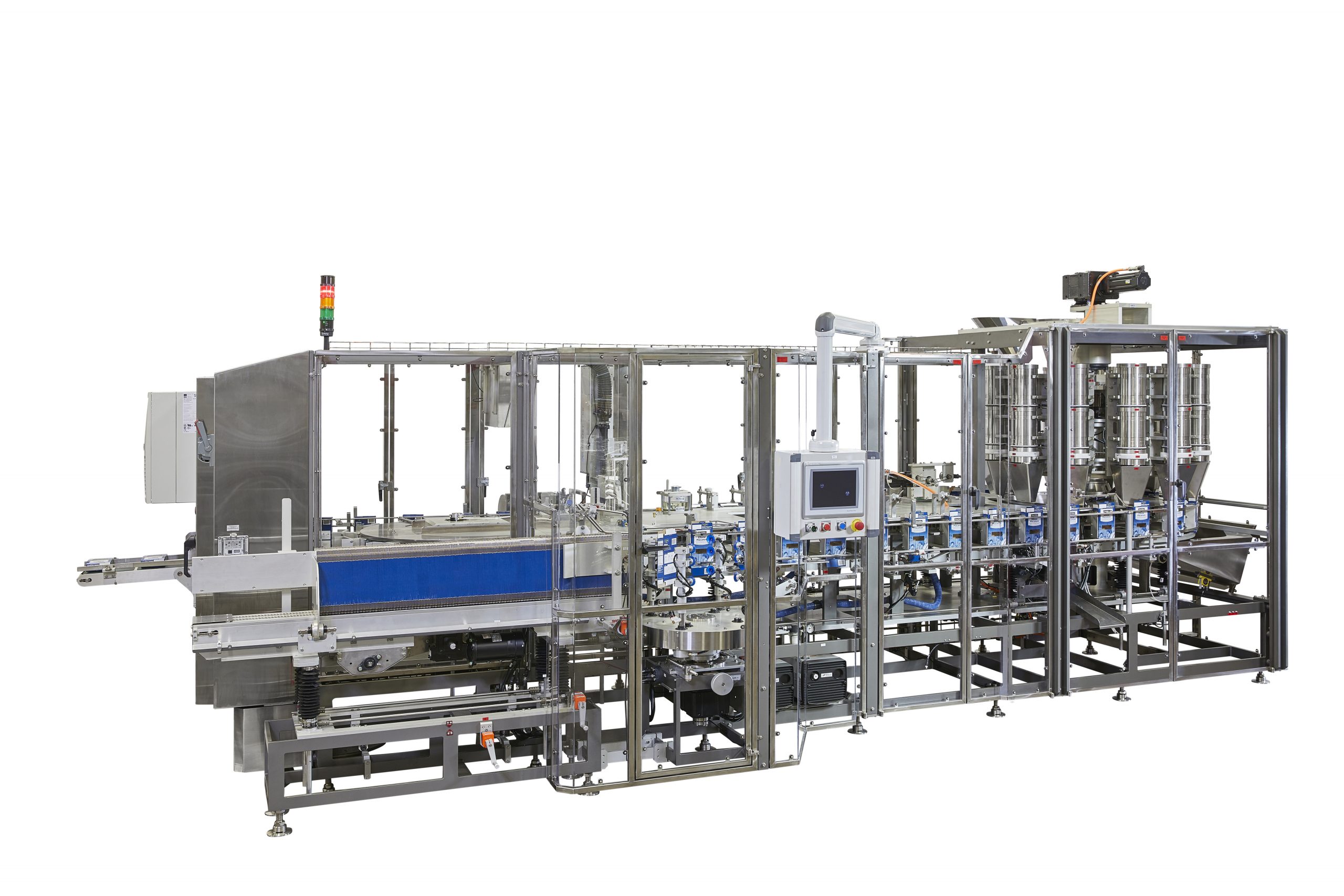

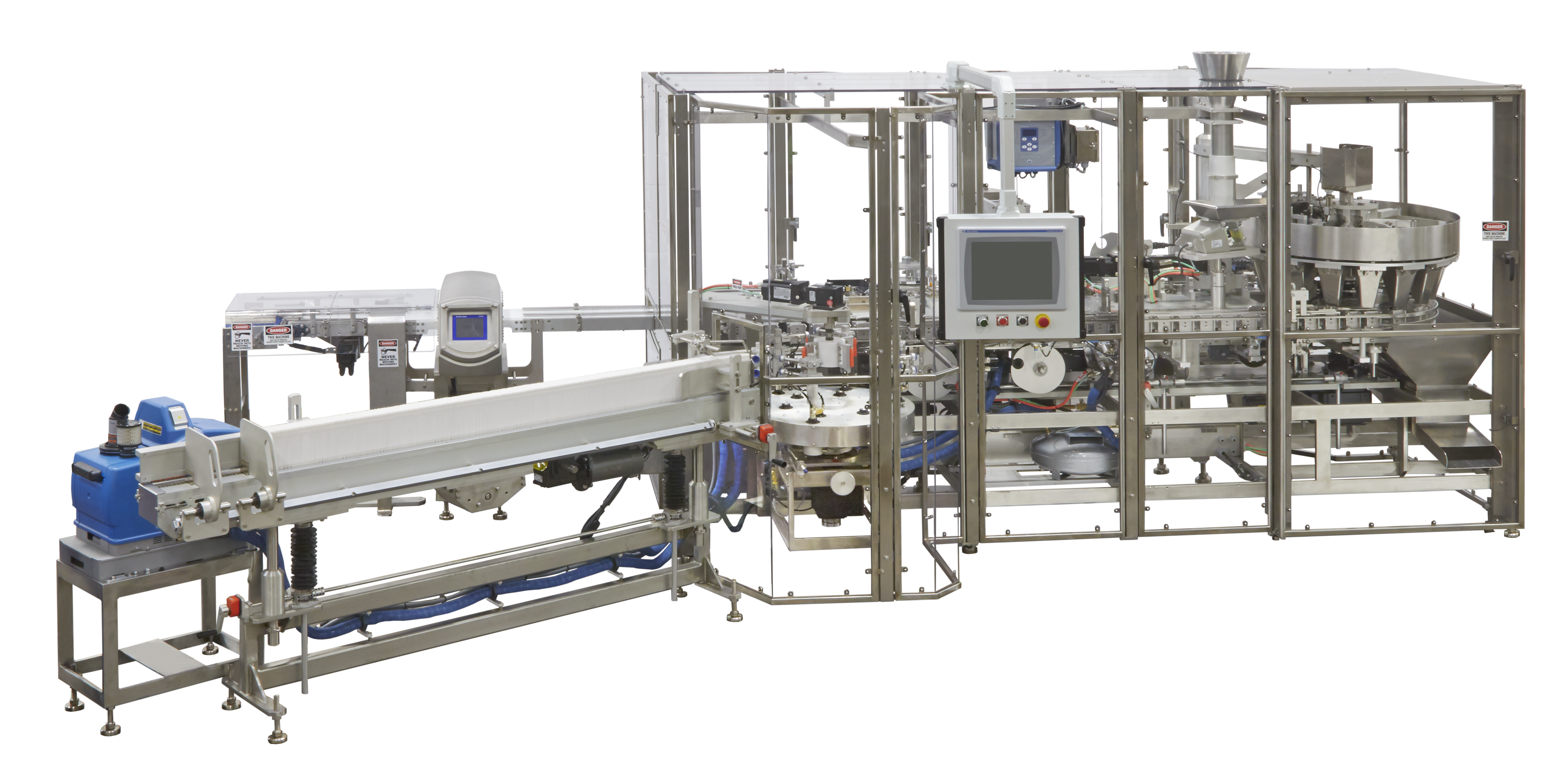

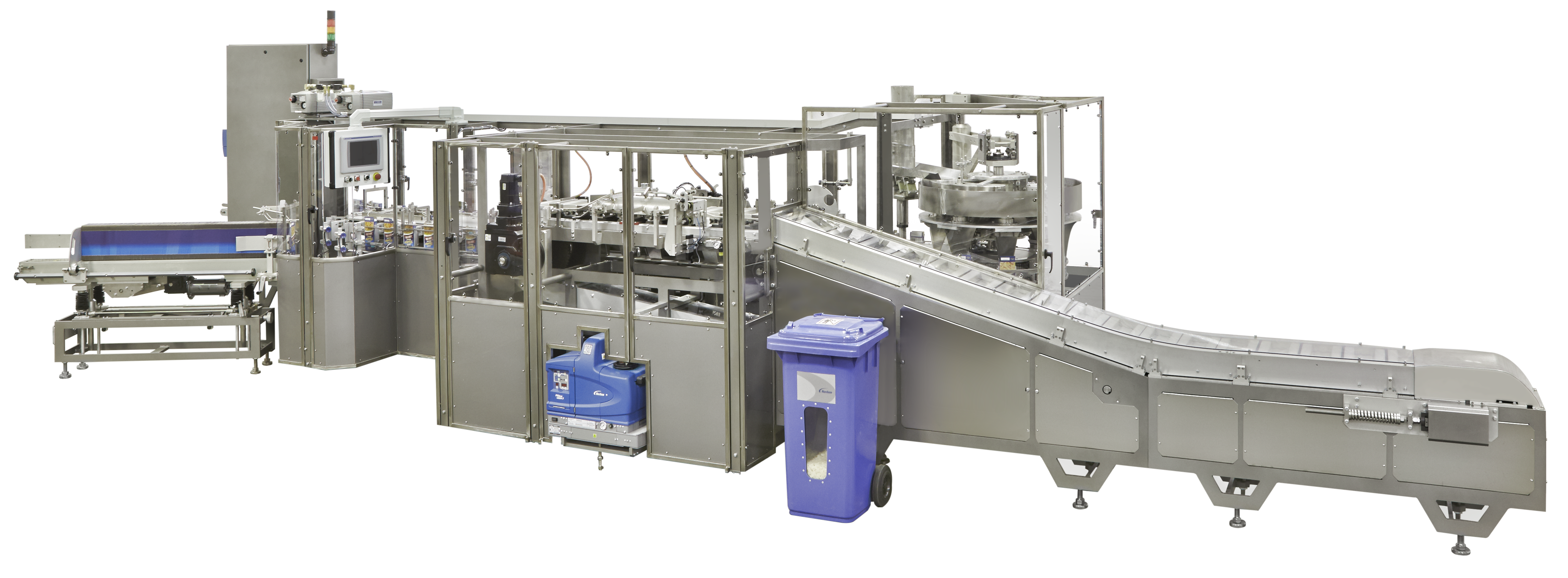

Vertical Cartoners

Vertical cartoning machines that that provide accurate, high-speed filling.

PMI KYOTO Packaging Systems provides vertical cartoners that are meticulously engineered to fill your cartons as quickly and accurately as possible. Loose, flowable products are handled gently and the superior carton control means streamlined operations with minimal waste. Our vertical packaging machines are the ideal solution for products ranging from dried pastas to fine powders. These comprehensive systems can cut your labor costs, eliminate bottlenecks, and transform your production flows so they deliver increased efficiency. Featuring a space-saving design, our equipment gives you exceptional ROI while helping you maximize your layouts. The automatic vertical packaging systems we build are known for durability and long-term consistency, enabling them to run at peak efficiency for many years. That means these cartoners end up saving you money in the long run, essentially paying for themselves in time.

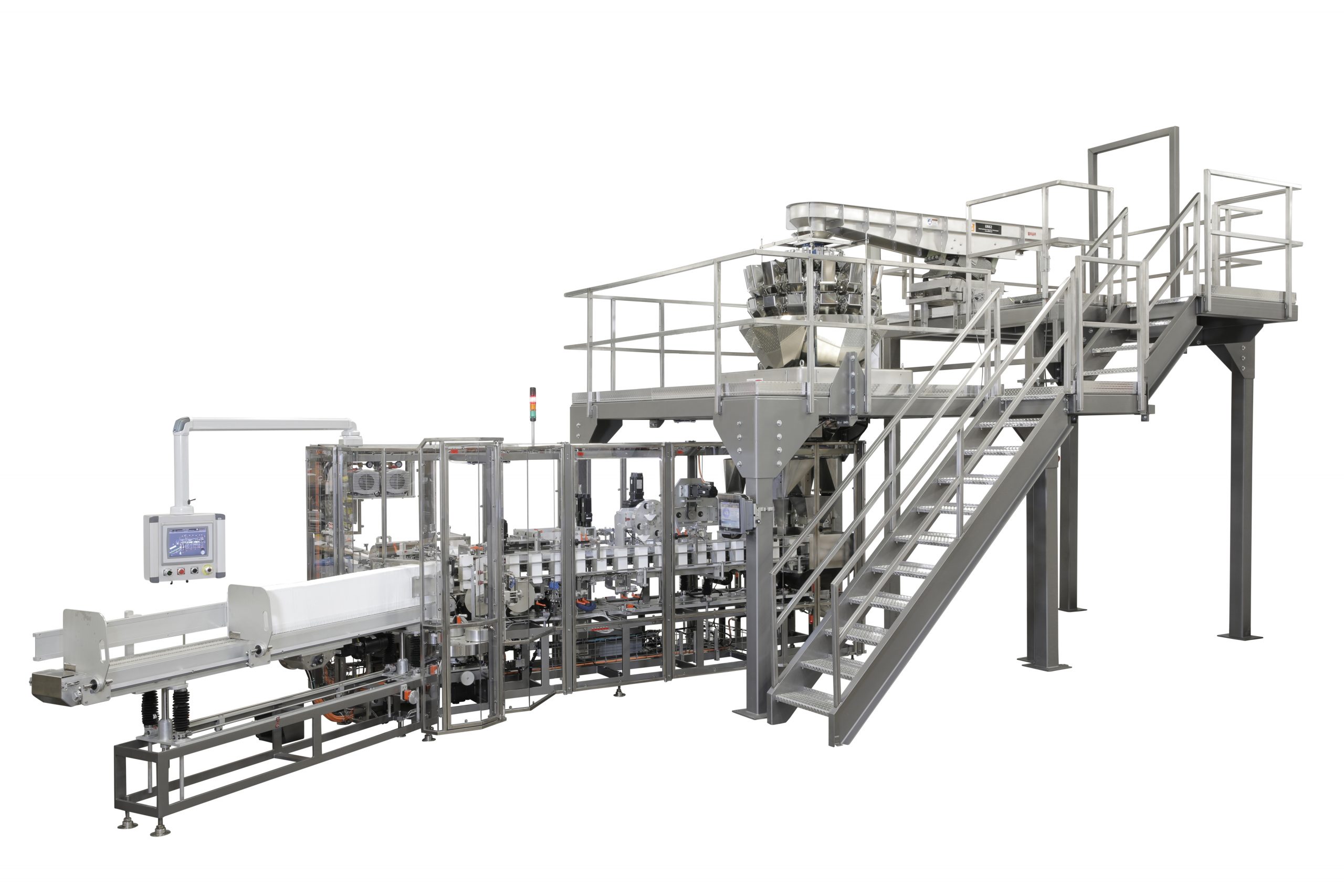

At the core of what makes our top load cartoners superior is their technology and process integrations. For example, we design our continuous vertical cartoners with index motion to easily integrate with various filling systems, such as combination weighers and augers. Once cartons are filled with product, our vertical filling machines secure cartons with a servo flap tucker and electric glue guns for sift-proof, end-flap gluing. Equipped with vertical volumetric fillers, these ensure repeatable volumes using either time-based or weight-based load mechanisms. By integrating rotary carton feeders, pivoting funnels, drop gates, or any other necessary features, our vertical volumetric fillers can provide you with a fully automated filling solution. We take pride in our ability to design a custom vertical cartoner to meet your specific process needs and exceed your throughput expectations.

OPERATIONAL ADVANTAGES

In addition to the obvious process enhancements our automatic vertical packing machines can provide, they also bring other benefits to your operations, such as:

Utilizing valuable floorspace effectively
Cutting labor costs
Reducing product loss
Optimizing production runs
Increasing safety
Eliminating bottlenecks throughout your process
Increasing throughput of your facility overall
And more

Benefits:

Heavy-duty, fully-welded solid steel main frame
Ethernet Connectivity module
Stainless steel drive shafts and protect guides
Central lubrication and auto lug chain lube
Full-height Lexan guard doors with interlocked stainless steel frame
Category-3 Safety (lockable guard doors available)
Servo-driven rotary carton feeder with pre-break
Extended carton magazine, powered with low-level indicator
Easy-to-change carton pockets or lugs to accommodate multiple sizes
Spindle adjustments with center-lining for quick and easy changeover
Open flap detection and rejection
Cycle stop mode – flaps in the process of being glued finish prior to the machine stopping
Norsdon hot melt glue system
Compliant with OSHA, ANSI, NFPA, ISO, LOTO, and UL

WORK WITH PMI KYOTO TODAY

When you choose to work with us, you can be sure we’ll be by your side every step of the way. We take a collaborative approach to designing your equipment, working closely with you to understand your needs as completely as possible. Our goal is to create the ideal solution for you. We won’t disappear when the job is done — our experts will continue to provide ongoing support as well as operator training.

PMI KYOTO takes pride in our ability to customize a solution that suits your needs. In addition to vertical cartoners with continuous motion at high speed, we also engineer case packers to assist you in the next stage of production. If you want to know more about how we can work together to solve your packaging issues, contact us today to receive an estimate for your new system.
